RoHS CE FCC High Frequency Double Sided Rigid Flexible PCB

Product Categories
Shenzhen Jingbang Technology Co. , Ltd
Contact Now

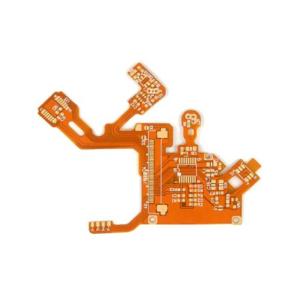

RoHS CE FCC High Frequency Double Sided Rigid Flexible PCB

  • 1
  • 2
  • 3

Brand Name : FASTPCBA

Model Number : PCBA Manufacturers

Certification : ISO13485, IATF16949, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : USD 0.1-3/ pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000pcs/month

Packaging Details : 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package.

Service : One-stop Service

Layer Count : 1-48

Testing Service : Function Test, 100% Test

MOQ : No MOQ

PCBA Test : X-ray,AOI Test,Functional test

Min line/space : 0.075/0.075mm

Contact Now

One-Stop Pcba Manufacxturer Double-Sided Copperclad Laminate Rigid Flexible Pcb Assembly Service

Article Description Capability
Material Laminate materials FR4, High TG FR4, High Frequency, Alum, FPC...
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Max Size of Finish Board 700*460mm
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA

RoHS CE FCC High Frequency Double Sided Rigid Flexible PCB

Delivery Time for PCB

Layer Prototype

Mass Productions

(above 30 m2 )
Quick Turn Unual Time
2 24 hours 3-4 days 8-10 days
4 48 hours 5-6 days 10-12 days
6 72 hours 6-8 days 12-14 days
8 96 hours 8-10 days 14-16 days
10 120 hours 12-14 days 16-18 days
... ... ... ...

Delivery Time for PCBA

Order Conditions Standard Delivery Date The fastest Delivery Date
Prototype (<20 pcs) 2 days 8 hours
Small Volum (20-100 pcs) 3 days 12 hours
Medium Volum(100-1000 pcs) 6 days 24 hours
Mass productions (>1000 pcs) Depends on BOM Depends on BOM

RoHS CE FCC High Frequency Double Sided Rigid Flexible PCB

As the experienced quick turn pcb prototype factory china, FASTPCBA provide one-stop pcba assembly service for customers of military pcba, communication pcba, automotive pcba, medical pcba, aerospace pcba, Iot pcba, smart home pcba, industrial pcba etc over 20 years.

With independent pcb factory in jiangmen guangdong province and pcb assembly factory in shenzhen china, FASTPCBA can provide the most competitive pcb price for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO & IATF certificates, safety,reliable and high yeild pcba obtained.

FASTPCBA is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, FASTPCBA will try our best to better serve for customers.

RoHS CE FCC High Frequency Double Sided Rigid Flexible PCB
